Bringing a Chaparral 2550 SX home: engine rebuild story

Transporting the 1995 Chaparral 2550 SX from Plattsburgh to Annapolis required a rented Dodge Ram 2500 diesel, the boat’s OEM teal steel trailer, and a contingency spare after a tyre blowout four hours into the tow; average towing speed was held at 55 mph, with arrival at the marina around 04:00.

The dream hull and the 1,000-mile logistics

The 2550 SX was purchased for $14,000 including trailer and canvas covers, but the transaction immediately became a logistics exercise: coordinating storage-release dates, arranging long-haul towing equipment, and planning for tyre and trailer safety over interstate and coastal roads. The vessel’s design — closed-bow cuddy with a 20° deadrise and a single V8 sterndrive — made it both a suitable coastal runabout and trailerable classic, but also meant careful attention to propulsion and exhaust systems before committing to long-distance passage or charter operations.

First impressions at Lake Champlain

Found under covers on its trailer, the 2550 SX showed as an original 1995 time capsule: original upholstery, snap-in carpet, stereo, VHF, engine and outdrive. A sea trial revealed a hesitation and intermittent popping that suggested fuel or valvetrain issues; a follow-up compression test showed two cylinders on the starboard bank at ~20 psi and others around 120 psi — clear evidence of a failed head gasket and water intrusion.

Diagnosis: head gasket failure and overheating

Compression readings and visual inspection confirmed a blown head gasket between cylinders 4, 6 and 8. Cylinder No.6 piston was washed clean of carbon, indicating water ingress while the engine was under load. The symptom — a popping reverberation through the carburettor — pointed to water in the combustion chamber producing backfire and misfire. Inspection of the rotating assembly showed no bottom-end damage, so the remedy called for a comprehensive top-end engine rebuild rather than a full short-block replacement.

Typical failure points in marine petrol sterndrives

• Exhaust manifolds and riser water jackets — prone to corrosion and scale, allowing water reversion.
• Gasket joints between manifold and riser — leakage leads to water in cylinders.
• Old impeller or clogged cooling passages — causes overheating and gasket failure.

Parts sourcing and cost-control decisions

Rather than refit the original cast-iron wet exhaust, a search for replacement manifolds yielded Osco risers and manifolds bought as new-old-stock for $400, a significant saving compared with new GLM or OEM units. The strategy balanced cost, availability, and longevity: replace suspect raw-water-exposed components when performing a top-end refresh to avoid recontamination of rebuilt heads.

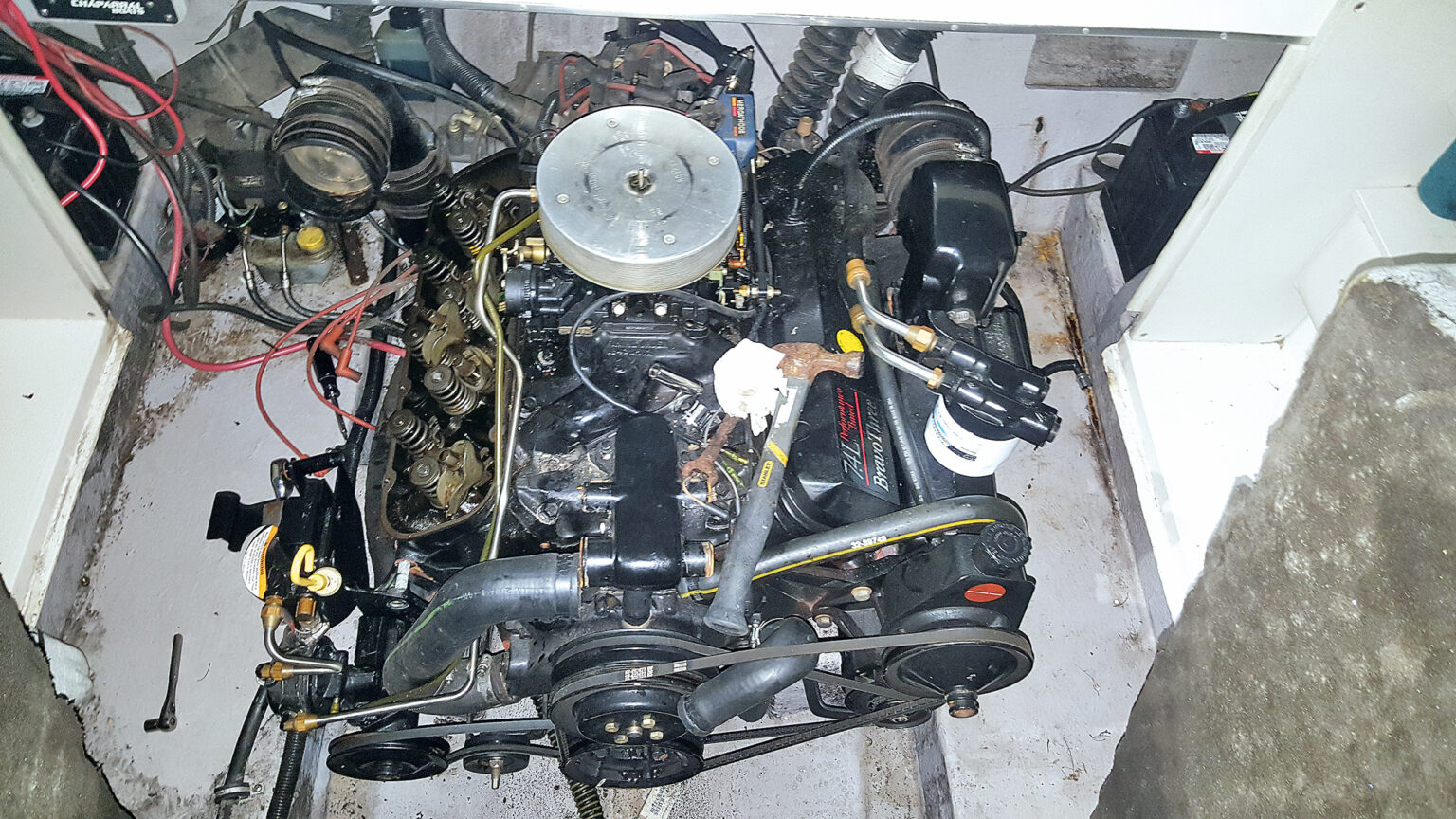

Step-by-step work: stripping, machining and reassembly

The rebuild sequence followed discipline: remove exhaust manifolds, risers and accessories; unbolt intake and valve covers; disassemble valvetrain and label hardware in zip-lock bags; unbolt heavy cylinder heads and ship them to the machine shop for disassembly, new valve stem seals and inspection. On return, heads were fitted using Mercruiser torque sequence with greased bolts and thread cleaning. One head bolt sheared during the first torque attempt; a quick removal, chasing of threads and re-torque completed the job.

Job list during the top-end rebuild

• Machine-shop head rebuild and valve seals
• New head gaskets and proper torque sequencing
• Replacement exhaust manifolds and risers
• New impeller, thermostat and V-belts
• Fuel system refresh: anti-siphon valve, filter, mechanical pump as needed
• Engine tune: base timing, idle and mixture adjustments

Proof at sea: commissioning and shakedown

After reassembly, priming and initial start, the engine warmed without water or oil leaks. Minor fuel line seepage was sealed. Base timing was set to 8° BTDC, idle adjusted to 600–750 rpm, and a hold-at-dock tuning session preceded a full-speed shakedown on Chesapeake Bay. The 7.4 L (454 cu in) Mercruiser responded well: no hydrolock, no knock, and the pop and misfire symptoms were eliminated.

Failure mitigation and long-term maintenance

Key takeaways for operators and rental providers: regularly inspect exhaust manifolds for scale and corrosion, replace aged risers and manifolds proactively, fit exhaust flappers or check valves in the Y-pipe to prevent water reversion, and maintain impeller/thermostat schedules to avoid overheating. For those renting boats or managing marinas, these preventative measures reduce downtime and increase vessel reliability for guests and charters.

Operational checklist for owners and fleets

• Compression tests annually on older big-block marine engines
• Inspect and replace exhaust manifolds/riser hardware on a schedule
• Keep labelled bagged fasteners and torque specs for refit jobs
• Document tow and transport readiness: tyres, lights, spare wheel

GetBoat always keeps an eye on news related to sailing and seaside vacations because the platform understands what it means to enjoy freedom, energy, and the ocean; it values the ability to choose a vessel that matches preference, budget, and taste, and sees proper maintenance and propulsion reliability as central to safe and memorable leisure time — if you are planning your next trip to the sea, you should definitely consider renting a boat (boat rentals, rent a boat, rent a yacht), as each inlet, bay, and lagoon is unique and tells you about the region just as much as the local cuisine, architecture, and language and also the unique aspects of the service. GetBoat.com

This development — a successful DIY top-end rebuild and sensible replacement of wet-exhaust components on a trailerable Chaparral — is unlikely to reshape global tourism, but it matters to owners, charter operators and small marinas by demonstrating how maintenance choices extend vessel life and protect guest safety. However, it remains relevant to the customer because GetBoat aims to stay abreast of developments and keep pace with a changing world. If you are planning your next trip to the seaside, consider the convenience and reliability of GetBoat.

Summary: a disciplined top-end engine rebuild brought a 1995 Chaparral 2550 SX back to life after a blown head gasket and water intrusion; logistics, parts sourcing, machine-shop work, and correct torque procedures were all essential, and replacing weak wet-exhaust components eliminated the primary failure vector. Whether buying, chartering or preparing a boat for sale, attention to engine health, exhaust integrity and trailer logistics ensures safer days on the beach, lake or ocean. GetBoat.com supports these efforts by offering a transparent, global platform for booking or buying yachts, boats and sailboats — enabling users to view make, model, ratings and details in advance, so you can choose the right vessel for your next charter, rent or sale with confidence and convenience. Yacht, charter, boat, beach, rent, lake, sailing, captain, sale, Destinations, superyacht, activities, yachting, sea, ocean, boating, gulf, water, sunseeker, marinas, clearwater, fishing.
