Deck saloon wiper repair aboard a Degero DS331

A Degero DS331 with a deck saloon must have reliable windscreen wipers for safe passages into marinas, coastal transit in rain, and when encountering bow spray; a failed wiper compromises lookout and berthing operations. After two decades in service, one wiper began running slowly and then seized completely, leaving the saloon exposed to poor visibility during passages.

Diagnosis and initial inspection

On inspection the electric motor spun freely when the wiper arm was removed, yet the driven shaft would not turn — a classic symptom of a seized drive. Salt intrusion into seals is a typical suspect on older vessels, but simple soaking in vinegar produced no movement, indicating the obstruction was internal and required full disassembly.

What to look for

• Motor spins but shaft is immobile — check coupling and circlip retention.
• Presence of gritty or black dust when opening housing — likely degraded grease or motor bush wear.
• Peened or deformed shaft ends — may indicate non-serviceable original assembly.

Step-by-step dismantling and freeing the shaft

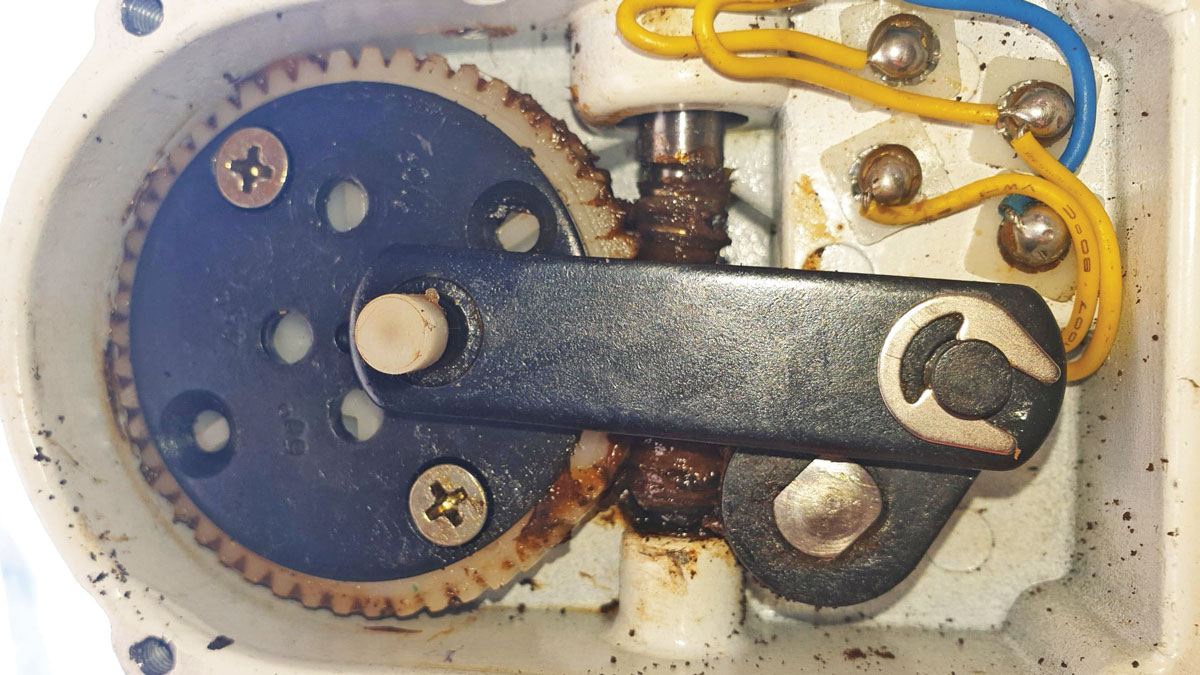

With the drive housing cover removed, the drive arm was found secured with a circlip. The short drive arm end had been peened over the shaft during manufacture, effectively preventing easy disassembly. A small rotary tool was used to grind the peened metal down flush with the arm face, allowing a drift and hammer to push the shaft out.

Once the shaft was withdrawn a quantity of black dust fell from the housing. This material likely came from dried grease or motor bush wear and would have caused progressive jamming. Cleaning the plain inner bearings and the shaft with vinegar followed by abrasion with fine wet-and-dry paper restored running surfaces. A light smear of appropriate marine grease prepared the components for reassembly.

Protecting the motor during work

To avoid contaminating the three carbon brushes while inserting the motor, temporary wire clips were used to compress the brushes against their springs. These clips make motor insertion much easier and can be removed once the motor is in place. Removing the motor prior to grinding the shaft end is strongly recommended to prevent metal swarf ingress.

Reassembly, retention and future-proofing

Because the shaft end had been ground down, the arm could no longer be retained by the peened metal. On reassembly the four corners of the arm were given small centre-punch dents to hold it against the shaft and counter the wiper arm spring. The rebuilt wiper now functions correctly; however, the owner plans to drill and tap the shaft end during the next haul-out and fit a flat-headed retaining bolt for easier future servicing.

Lessons for DIY boatowners

• Always protect the motor and brushes when performing metalwork nearby.
• Clean debris out of housings — black dust is a sign of internal wear.
• Consider making future access simpler: replace peened joints with serviceable fastenings.
• Keep simple tools aboard: a small rotary tool, drift punch, and basic hand tools saved the repair.

Maintenance and charter implications

For owners and charter operators, a seized wiper is more than an inconvenience: it affects safety, guest comfort, and the perceived reliability of a vessel. Fleet managers and private owners should add windscreen wiper inspection to routine checks before high-season charters. For boat rental businesses and yacht charter companies, preventive replacements of vulnerable seals and greases reduce downtime and improve customer satisfaction.

Quick maintenance checklist

• Operate wipers through full sweep during pre-departure checks.
• Check for play in shafts and signs of water ingress at seals.
• Inspect motor brushes for wear and remove any accumulated dust.
• Lubricate plain bearings with marine-grade grease annually.

Tools, costs and time planning for a typical DIY repair

A straightforward repair like this is well within the capabilities of a competent owner. Budget for small consumables (grease, wire clips, a retaining bolt) and allow one half-day to a full day depending on access and whether the motor must be removed. If drilling and tapping the shaft end is chosen as a permanent solution, factor in a later scheduled haul-out or careful in-water work where safe.
