DIY laminated tiller for a Snapdragon 23
Alexandra

Refitting a tiller affects berth occupancy and workshop logistics: expect 2–4 days of clamps, a reserved bench space large enough for an 800–1,000 mm assembly plus a jig, and timely delivery of eight planed laminates and Polyproof resin to avoid costly marina overstay charges.
Why replace a tiller: wear, ergonomics and operational impact
The original tiller on the Snapdragon 23 had delaminated as water had crept between plies, the glue failed, and grooves from the windvane self-steering lines compromised strength and comfort. The aft end projected too high for prolonged helm comfort, forcing a functional redesign rather than a repair. Replacing the tiller restored control, improved crew ergonomics, and reduced the risk of sudden failure during a charter or private cruise.
Materials, tools and workshop planning
When preparing to laminate a tiller, plan procurement and space early. The following table summarises the essential materials and approximate lead times for a DIY project without a full machine shop.
📚 You may also like
| Item | Quantity | Purpose / Notes |
|---|---|---|
| Ash laminates | 4 planks, planed | Strength layers; good shock resistance |
| Sapele laminates | 4 planks, planed | Wear surface and contrast; durable |
| Polyproof resin | 1–2 kg | Waterproof phenol–formaldehyde adhesive |
| Clamps and bench jig | Assorted | Jig to set curve and hold until cured |
| Sanding / shaping tools | Spokeshave, block plane, belt sander | Finish and round the tiller |
| Varnish | Seven coats | UV and water protection |
Logistics tip
Order laminates slightly longer than the old tiller and plan delivery so glueing and clamping happen immediately on receipt. Delays increase the chance of needing temporary repairs that can disrupt rental schedules or private plans.
Step-by-step: laminating the tiller
Laminating creates a strong, stable tiller and allows the builder to alter the curvature to improve helm reach and comfort.

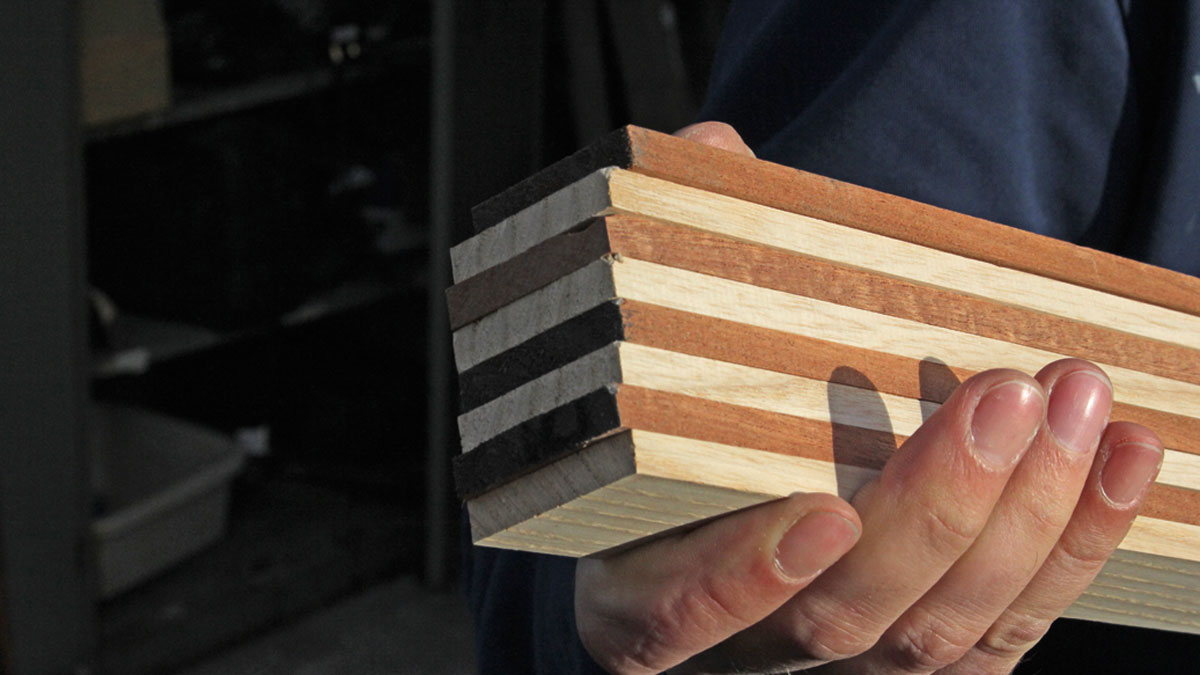

- Measure the old tiller and order eight planed laminates: four ash and four sapele, slightly longer than the original piece.
- Use the aft portion of the old tiller to set the slot profile for the aft coaming and traveller. Mark an increased forward curve to lower the steering end for better ergonomics.
- Apply Polyproof resin with a toothed spreader to one face of each laminate, then stack the laminates. Work quickly—resin viscosity affects repositioning time.
- Clamp to a pre-prepared jig. Allow laminates to slide as they bend; protect unwanted glue areas with parcel tape or plastic.
- Tap any proud laminates down with a wooden block before final clamp tension.
- After cure, remove clamps and trim excess glue with a tungsten-carbide scraper and belt sander; finish with a jack plane for true edges.
Initial shaping and achieving the desired profile
With laminates glued, the shaping process creates the ergonomically correct cross-section and taper.
- Mark the lower face curve using a batten; remove waste material by cutting close to the marked curve at 25 mm intervals with a tenon saw, then pare away with a sharp chisel.
- Finish flat and square surfaces with a wooden spokeshave and plane a gentle side taper to form a clean rectangular forward section.
- Where a bandsaw is available, use it for faster removal; otherwise, the tenon saw and chisel method produces accurate control without heavy equipment.
Turning a square into a round grip
Converting the forward end to a comfortable round grip follows progressive faceting and sanding.
- Mark an octagon from the square using a spar gauge set to a 7:10:7 ratio, then plan the octagonal faces with planes and spokeshave.
- Refine to 16 sides and sand across the grain with a belt sander belt used inside out, then hand-sand along the grain for a smooth finish.
- Cut the forward end square where needed, then mark a hemisphere and remove material with a block plane, finishing by sanding to final contour.
Fitting, tolerance and finishing
Tolerances for the rudder stock require patient fitting and allowance for multiple varnish layers.
- Glue small fillers into the tapered aft section where extra depth was needed, allow to cure, and rough-shape to the old tiller’s outline.
- Sample-fit repeatedly; use careful planing to reach a snug fit with varnish clearance.
- Trim leaving about 25 mm (1 in) protruding; finish with 240-grit sandpaper and apply seven coats of varnish for marine-grade protection.
Practical notes from the workshop
The resin used will blunt cutting edges rapidly; avoid planing squeezed resin with sharp plane irons if possible. For charter or rental boats, keep a small inventory of spare tiller fittings and a template of the tiller profile to expedite future replacements and reduce downtime.
