Fitting a Dometic SeaStar Jack Plate on an Outboard
Alexandra

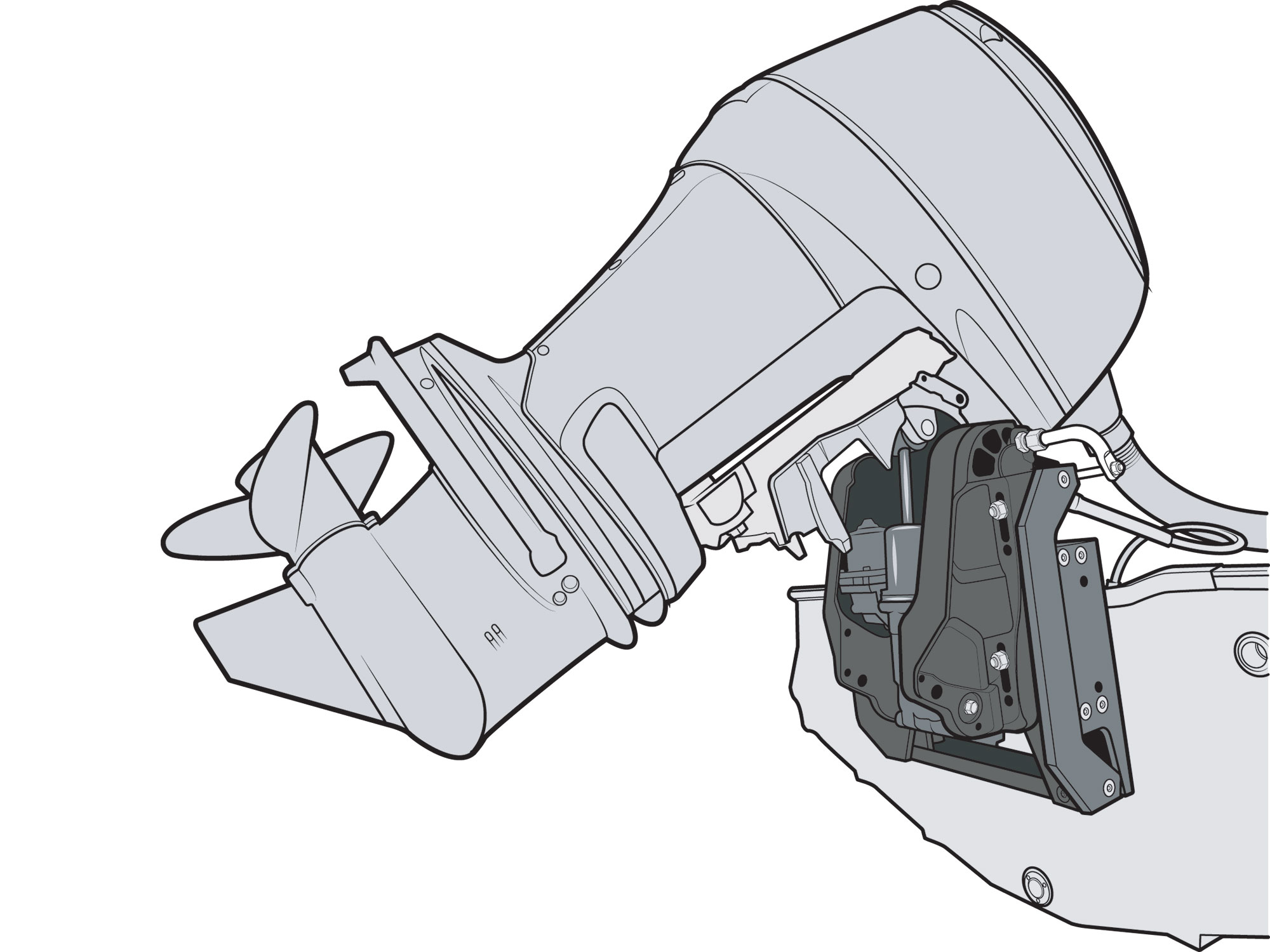

A Dometic SeaStar Xtreme JP5040X jack plate provides a 4-inch setback and is rated for up to 300 hp, with an integrated hydraulic actuator that eliminates external pumps and hoses and simplifies installation logistics for trailered boats.
Why add a jack plate to your outboard-powered boat
Jack plates mounted between the transom and the outboard create three operational advantages: the ability to operate in shallow water by elevating the lower unit, reduced drag and improved top speed when partially raised, and adjustable setback that positions the propeller in cleaner water for more efficient thrust. These benefits apply to a range of craft from bass boats and bay boats to classic runabouts such as a restored 1977 Witchcraft.
Typical jack plate features and selection criteria
When selecting a jack plate, consider:
📚 You may also like
- Horsepower rating and compatibility with your outboard model (e.g., long-shaft Suzuki 115 hp).
- Setback range—how far aft the propeller can be moved.
- Whether the unit has an integrated hydraulic system or requires external pumps and hoses.
- Mounting bolt pattern alignment with your transom and the engine.
Tools, parts and preparation
| Item | Purpose | Notes |
|---|---|---|
| Dometic Xtreme JP5040X | Jack plate | 4" setback, up to 300 hp; built-in hydraulics |
| Manufacturer-approved mounting hardware | Secure plate and outboard | Use backing plates or fender washers |
| Hydraulic-capable relay harness | Power and control | Seal entry at transom with a gland |
| Hydraulic floor crane or hoist | Remove and reinstall engine | Rated for engine weight |
Estimated skill level: 3.5/5. Estimated finish time: 3–4 hours for a single technician with a helper available to torque fasteners.
Step-by-step installation
1. Remove the outboard
Use a lifting device such as a one-ton hydraulic floor crane to support the engine. Tilt the outboard to vertical, secure the lifting eye with a heavy-duty hook and chain, and take up the slack prior to removing the mounting bolts. Move the engine clear of the transom and set it aside in a safe location on a padded cradle or stand.
2. Fit and bed the jack plate
On Xtreme models that match standard bolt patterns, insert engine-side mounting bolts through the plate with threads aft. From inside the transom, pass approved bolts through the transom and jack plate mounting holes. Use marine sealant under the plate and under fender washers or backing plates for a watertight bond. Install thick 1/2-inch stainless-steel washers under brass locknuts and torque to manufacturer specifications. Tightening may require two people to prevent transom deformation.
Clearance check
With the jack plate at its lowest position, verify full steering range. Center the outboard and gently tilt it up to confirm there is no interference with steering cylinders, hoses, tiebars, or other components. Re-check clearance after torquing fasteners.
3. Run the relay harness and power feed
Mount the relay harness in a dry location using the bracket holes. Connect the red cable (via an inline circuit breaker) to the positive battery post and the black cable to the negative post. Route the actuator plug through the transom using a cable gland to maintain a watertight seal and plug it into the jack-plate pigtail. Run switch leads and battery fused wiring to the dash, securing wiring with zip ties and mounts to avoid chafing.
4. Install the control switch
Xtreme jack plates use a momentary two-way rocker switch. Cut an appropriately sized rectangular opening in the dash, pull switch leads through, and attach spade connectors to the supplied harness leads. Before seating the switch, cycle the jack plate to confirm movement directions match the switch legends. Optional upgrades such as Dometic Pro-Trim provide turn-signal-style fingertip control and integrate with hydraulic and cable steering helms.
5. Reinstall the engine and final tests
Position the crane to align the engine with the engine-side bolts pre-installed in the jack plate. Use washers and brass locknuts, torque to spec, then cycle the jack plate through its full range and verify clearance during tilt and steering extremes. Confirm that all electrical connections are secure and that the actuator responds without delay.
Installation tips and safety checklist
- Always read the manufacturer installation manual before starting.
- Use backing plates or fender washers under bolt heads to spread load on the transom.
- Bed all through-hull hardware with marine sealant suitable for below-waterline use.
- Support harnesses to prevent wire fatigue at transom penetrations.
- Inspect fasteners and hydraulic fittings after the first few outings.
Model comparison snapshot
| Model | Max HP | Setback | Hydraulics |
|---|---|---|---|
| Dometic SeaStar Xtreme JP5040X | 300 hp | 4 in | Integrated |
| Dometic Mega Jackplate series | Up to 600 hp | Variable | Integrated (heavy-duty) |
