Insights into the Dix 43 Sailboat: Specs and Performance
Alexandra

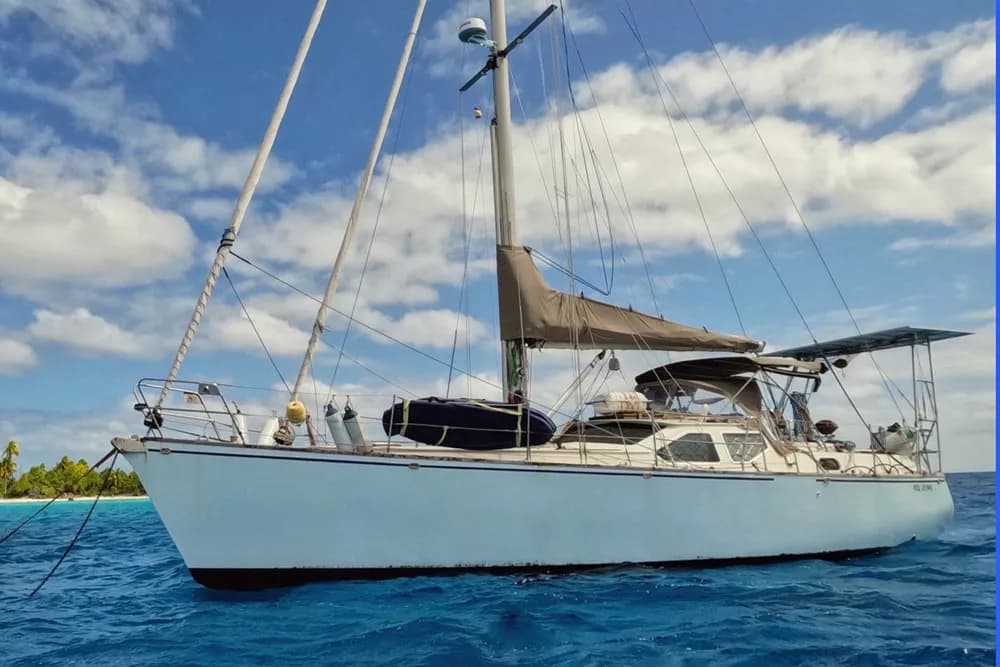

The Dix 43 Sailboat Overview
The Dix 43 sailboat, conceived by designer Dudley Dix, boasts a design that has been tailored by various custom builders, including the renowned Jacobs Brothers based in South Africa. Since its inception in the mid-1990s, the Dix 43 model has seen boats built continuously up to 2017, with some likely still being constructed by individual artisans. This versatility speaks volumes about its enduring appeal in the sailing community.
Specifications of the Dix 43
The specifications for the Dix 43 sailboat outline its considerable capabilities:
| Specification | Value |
|---|---|
| Keel & Rudder Configuration | Fin keel with semi-balanced spade rudder protected by skeg |
| Hull Material | Aluminium and steel |
| Length Overall | 13.36 metres (43'10") |
| Waterline Length | 11.86 metres (38'11") |
| Beam | 4.09 metres (13'5") |
| Draft Options | 1.80 metres (5'11") fin keel; 1.45 metres (4'9") wing keel |
| Rig Type | Cutter |
| Displacement | 14,300 kg (31,517 lbs) |
| Ballast | 4,000 kg (8,816 lbs) |
| Sail Area | 91.44 m² (984 ft²) |
| Water Tank Capacity | Approximately 984 litres (260 US gallons) |
| Fuel Tank Capacity | Approximately 810 litres (214 US gallons) |
| Hull Speed | 8.35 knots |
| Year First Built | 2000 |
| Year Last Built | 2017 |
| Number Built | Not specified |
Design Features
These specifications lead to intriguing insights regarding the overall design of the Dix 43. The sailboat’s moderate to heavy displacement makes it an excellent choice for comfort and stability, especially in offshore conditions. This comfort means that sailors can expect a smooth ride even in choppy waters, allowing for extended voyages without feeling out of control.
📚 You may also like
The sail area/displacement ratio indicates that the Dix 43 is adequately powered in typical cruising winds, offering a good blend of performance and ease of handling. Those looking to embark on lengthy sailing adventures without dealing with constant overpowering situations will find the Dix 43 a reliable companion.
Variations of the Dix 43
There are later variations of the Dix 43 that stand out due to their unique features:
- Dix 43 Pilot: Integrates a pilothouse, enhancing protection from the elements. This version offers an indoor helm station, which is particularly advantageous for offshore sailing and colder climates.
- Dix 43HD: Built for blue-water cruising, this rendition typically has an aluminium or steel hull, providing added durability. The rig is often set further forward than the standard model, creating a configuration that supports greater stability and ballast.
Sailing Dynamics & Performance Ratios
The noteworthy ratios for the Dix 43 offer insights into its sailing dynamics:
| Ratio | Value |
|---|---|
| Displacement/Length (D/L) | 238 |
| Sail Area/Displacement (SA/D) | 15.7 |
| Ballast/Displacement | 28.0% (4,000 kg / 14,300 kg) |
These performance metrics suggest that the Dix 43 is well-suited for cruising, striking a balance between stability and performance. With a respectable ballast ratio, it stands firm under sail while enhancing comfort on the water.
Limitations of Design Ratios
Despite the usefulness of design ratios, they also exhibit significant limitations:
- Simplified Metrics: These ratios do not encompass the complexities of a hull’s shape, which affects its performance significantly.
- Keel and Rudder Design: Details regarding the keel’s aspect ratio and the rudder’s size are not conveyed, both of which are crucial for understanding maneuverability.
- Weight Distribution: Ratios overlook how weight is distributed longitudinally and vertically, which influences a sailing vessel's pitch, comfort in waves, and how it handles turbulent conditions.
- Rig Efficiency: While sail area/displacement gives an idea of power, it neglects variables such as mast flexibility and sail shape.
- Real-World Performance: Dynamic conditions, including wave heights and crew skill, substantially impact a boat's actual performance.
Embrace the Adventure of Sailing
Stepping aboard a sailboat like the Dix 43 is not merely about navigating from one point to another; it's about immersing oneself in the splendor of the open water, seeking new horizons, and experiencing the unique rhythm of life at sea. As you sail, you become attuned to the culture, nature, and exquisite beauty that each new location offers. A new bay, a hidden inlet, or a lively marina are more than geographical features; they are gateways to adventure.
Planning a trip to the sea inevitably means considering a boat rental. Whether it's for a tranquil day on the lake or an exhilarating adventure in the ocean, each unique inlet and lagoon has its story to tell, much like the delicious cuisine and diverse architecture you’ll experience. For those eager to embrace flexibility and tailored experiences for their sailing journeys, GetBoat.com is an excellent resource. The platform conveniently connects you to various boat rental options, ensuring a journey filled with discovery, comfort, and adventure.
Final Thoughts
Opting for a Dix 43 sailboat reflects a commitment to both adventure and comfort on the water. The balance between performance and spacious design can contribute to a well-rounded sailing experience. As you contemplate your next seaside trip, consider how a customized boating experience can enhance your journey amid the vast and breathtaking ocean scapes. Get ready to cast off into unforgettable adventures and create memories that stretch far beyond the horizon, as sailing unlocks a world where freedom reigns and life feels limitless.
