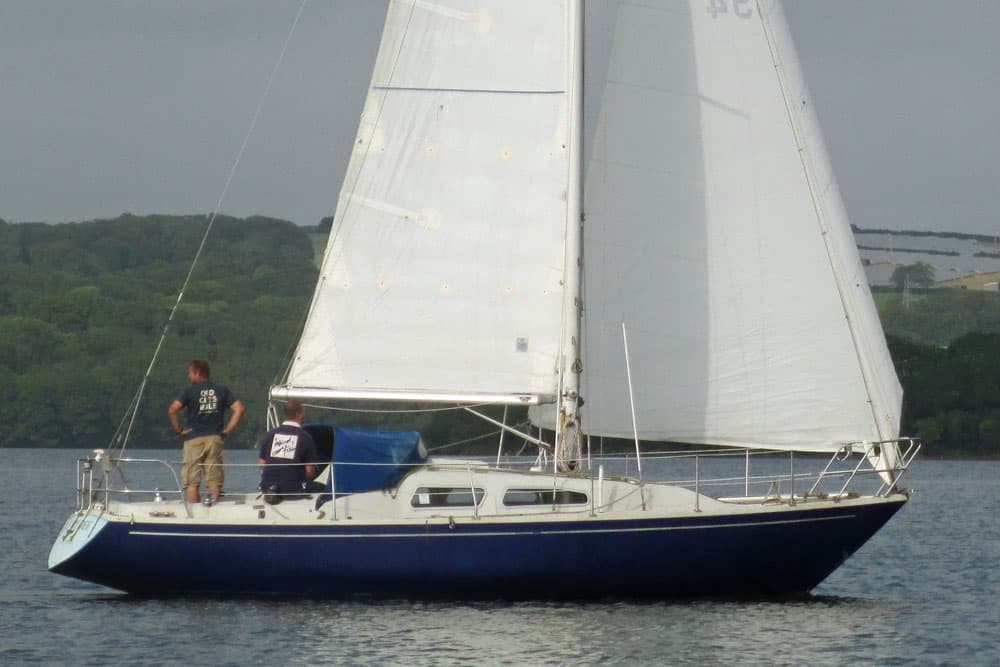

Discover the Albin Ballad Sailboat Specifications
Alexandra
The Albin Ballad Sailboat Overview
The design of the Albin Ballad sailboat, crafted by Rolf Magnusson and produced by Albin Marine in Sweden between 1971 and 1981, showcases remarkable sailing characteristics that appeal to both novice and experienced sailors alike.
Published Specification for the Albin Ballad
Keel & Rudder Configuration: Fin keel with a skeg-hung rudder; lead ballast encapsulated within the fibreglass keel.
Hull Material: Made of GRP (fibreglass), with a fibreglass-Divinicell sandwich deck.
Length Overall (LOA): 9.14 m (29'11")
Waterline Length (LWL): 6.88 m (22'7")
Beam: 2.95 m (9'8")
Draft: 1.55 m (5'1")
Rig Type: Masthead Sloop
Displacement: 3,300 kg (7,276 lbs)
Ballast: 1,550 kg (3,417 lbs)
Sail Area: Approximately 34.93 m² (375.94 ft²)
Water Tank Capacity: Approximately 65 litres (17.2 US Gallons / 14.3 Imperial Gallons)
Fuel Tank Capacity: Approximately 33 litres (8.7 US Gallons / 7.2 Imperial Gallons)
Hull Speed: Approximately 6.38 knots
Designer: Rolf Magnusson
Builder: Albin Marine (Sweden)
Years of Production: 1971 - 1981, with some built until 1998 by other yards.
Number Built: Approximately 1,500
Options & Alternatives
The Albin Ballad was designed as a masthead sloop equipped with a fixed fin keel, preventing major variations in rig options. Though some customization by owners exists, factory-offered alternative layouts are not common. Its layout typically features two settee berths and two pilot berths in the saloon, along with a compact galley, chart table, heads compartment, and a V-berth in the forecabin.
Sail Areas & Rig Dimensions
Sail Areas
Mainsail Area: 15.9 m² (171 ft²)
100% Foretriangle Area: 21.08 m² (226.87 ft²)
Genoa (105%): 25.2 m² (271.25 ft²)
Genoa (135%): 28 m² (301.4 ft²)
Spinnaker Area: 70 m² (753 ft²)
Rig Dimensions
I: 11.30 m (37'0")
J: 3.73 m (12'3")
P: 9.75 m (32'0")
E: 2.84 m (9'4")
Theoretical Sailing Characteristics
The Albin Ballad’s design ratios depict it as a well-balanced cruiser-racer, highlighting several performance potentials, including:
Sail Area/Displacement Ratio (SA/D): Ranges from 16.1 (100% foretriangle) to 18.71 (with 135% genoa), indicating excellent performance potential.
Ballast/Displacement Ratio (B/D): Stands at 47.0%, denoting a boat that resists excessive heel and delivers better performance while sailing upwind.
Displacement/Length Ratio (D/L): Around 282, categorizing it as a heavy displacement vessel ideal for cruising.
Comfort Ratio (CR): Scoring at 22.1, it suggests the boat offers a comfortable ride.
Capsize Screening Formula (CSF): A value of 2.0 displays good initial stability, making it viable for offshore passages if adequately equipped.
Beyond the Design Ratios
While design ratios offer insights into the Albin Ballad's capabilities, they do have limitations. Key considerations include:
Simplification: Ratios cannot fully capture the complex nature of sailing dynamics; they serve as general indicators rather than precise metrics.
Shape and Efficiency: Ratios do not provide insights into sail quality, shape, or effectiveness during varying conditions.
Dynamic Performance: Performance relies on numerous variables that ratios do not consider, including crew expertise and environmental conditions.
Construction Quality: Ratios do not reflect the boat’s build integrity or the materials used, essential factors in long-term performance.
Subjective Experience: The emotional pleasure derived from sailing is rooted in aspects such as handling "feel," responsiveness, and user comfort which cannot be quantified.
Understanding the Albin Ballad requires more than just numbers; sailors must also consider their experiential knowledge, the vessel's physical characteristics, and the context of the sailing conditions.
