Major Mast and Rigging Upgrade on an Albin Ballad
Alexandra
With the mast lowered and secured on five oil drums, the project began by removing all chainplates, backing plates, galvanised beams and deck eye bolts to allow a full inspection and replacement of standing and running rigging on a 1973 Albin Ballad.
Mast removal, inspection and corrosion control
The disassembly revealed generally sound original metalwork; only small areas of surface rust were found on the galvanised beams. These were sanded, primed with two coats of epoxy primer and finished with two coats of a single-component metal paint. Old caulking was stripped from chainplates and bearing surfaces, and all fittings were cleaned and assessed for fatigue before reassembly.
Key logistics during the strip-down
- Secure mast support: five oil drums beneath the spar to eliminate torsion while working.
- Remove hardware in sequence: masthead fittings, chainplates, backing plates, deck eye bolts.
- Treat and paint galvanised beams immediately to prevent flash rust.
Inner forestay fitting and checkstays
To increase versatility in heavy weather, an inner forestay was fitted to accept a hanked-on staysail. Although not a cutter by design, the Ballad benefits from a Solent-style or inner forestay when the genoa must be furled. The owner selected Seldén components for their simplicity and robustness: an O fitting for the inner forestay and T-terminal backing plates for checkstays.
📚 You may also like
Installation steps for the inner forestay fitting included creating oval access openings on the mast, applying Duralac anti-corrosion paste to mating surfaces, and riveting the fitting in place. For checkstays, T-terminals with fork ends were chosen to allow flexibility of materials: 7x7 or 7x19 wire, or high-modulus rope such as Dyneema. Dyneema was selected here for light weight and ease of removal when not in use.
| Component | Purpose | Material / Brand |
|---|---|---|
| Inner forestay (O fitting) | Hanked staysail attachment | Seldén |
| Checkstay backing plates (T-terminals) | Load distribution and attachment | Seldén, Dyneema lines |
| Deck blocks & U-bolts | Lead checkstays to clutches | 72mm Selden blocks, Wichard watertight U-bolts |
| Clutches | Lock loads and free winches | Spinlock XTS |
Deck-side routing and handling
Checkstays are led through the 72mm Selden blocks mounted on Wichard U-bolts, supported underdeck by epoxied plywood pads and stainless backing plates. Lines run through Spinlock XTS clutches and are tensioned with the spinnaker winches; once pressure is taken by the clutches, winches remain dedicated to staysail sheets.
Mast steps and safe access
Working on the spar required reliable laddering: aluminium folding steps by Mast Walker were chosen for a balance of weight, strength and aesthetics. Installation required drilling and tapping approximately 60 holes along the mast. The top two steps were fixed, closed-loop stainless designs to offer secure footing when working at the masthead.
- Standard spacing: 40–45 cm between steps, adjusted for mast fittings and crosstrees.
- Fixing method: countersunk 6mm machine screws after 5mm pilot drilling and thread tapping.
- Corrosion prevention: coat holes and step interfaces with Duralac as both anti-corrosive and thread locker.
Deck pad-eye placement and underdeck reinforcement
The pad-eye to support the inner forestay was positioned aft of the windlass, roughly 115 cm aft of the headstay, aligning the inner forestay parallel to the headstay. To resist lifting forces the owner installed a matching pad-eye below decks and connected them with a supporting strut.
Core protection was ensured by drilling oversized holes, removing core material, taping from below and injecting epoxy resin from above to create a solid epoxy plug. After cure, holes were re-drilled to final size. This method reduces the risk of water ingress and delamination around deck fastenings.
Underdeck support was fabricated by modifying the bulkhead between anchor locker and V-berth: the lower 25 mm plywood section was epoxied and through-bolted to tabbing, providing a secure bearing for the strut and accepting 8 mm machine bolts. A 3 mm 316 stainless backing plate was trimmed and fitted to distribute load from the third pad-eye.
Fabrication details and rigging hardware
The support strut comprised 1x19 6 mm wire swaged to fork terminals, rigging screw and fork terminal on the opposing end. One original stainless Hasselfors rigging screw was reused; chromed-bronze replacements had previously been installed on other stays.
Performance outcomes after the upgrade

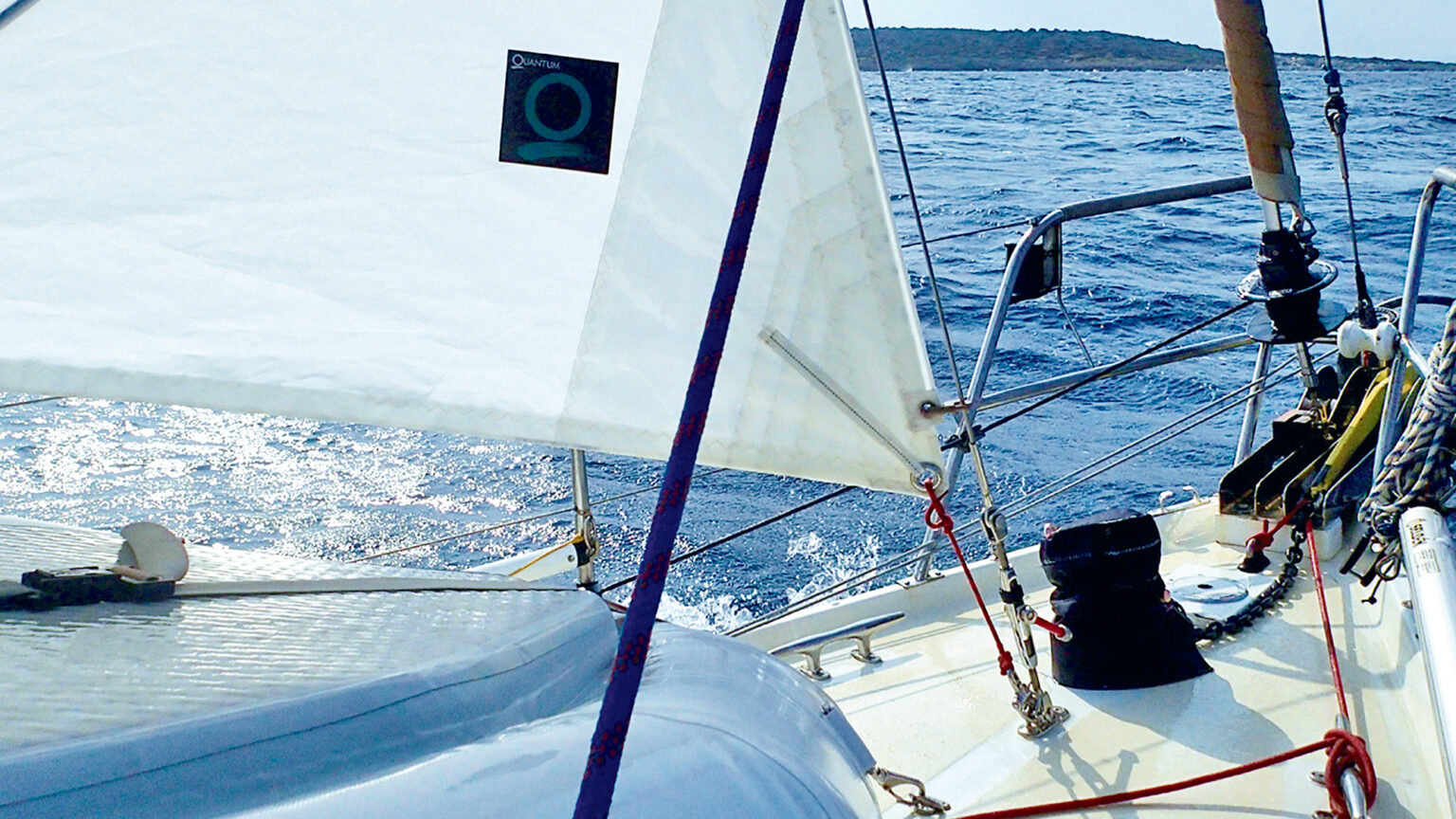

After completing the work, the inner forestay has proved valuable for long-distance cruising. A hanked-on staysail (11 m2) from Quantum Sails doubles as an efficient heavy-weather headsail compared with a storm jib and offers better control than a heavily-rolled furling genoa. Typical handling in the central Aegean: hoist mainsail and staysail and unfurl genoa; with increasing wind reef the mainsail and partially furl the genoa; in winds over 30 knots, furl the genoa and continue under staysail and reefed mainsail for reduced slamming and improved average speed.
Understanding metal fatigue: what causes rigging and engine failures?
Distinguishing between sudden fractures and fatigue fractures is essential when inspecting standing rigging; visible beach marks on a failed wire indicate fatigue. Regular inspection and replacement schedules help avoid catastrophic failures offshore.
