Marine Power System Installation Guide – Step-by-Step Onboard Power System Setup

Start with the head layout: map peak loads for essentials–navigation, lighting, comms, sensors, and bilge pumps–and assign a dedicated circuit for each. This prevents cross-loading and protects sensitive instruments. In a busy marina, note the setup in your blog so the crew sees the plan, time saved during installation, and care taken from the start. Define the basics of the system and keep the approach clear for immediate troubleshooting.

Always identify types of power first: shore power or generator when docked, a house battery bank for daily loads, and a separate start battery. For a 12V system, size the battery bank for at least 100 Ah of usable capacity per essential circuit, with a reserve for 1–2 hours of critical operation in a period of heavy use. Run main feeders with appropriately rated fuse blocks: for a 200 A total demand, use AWG 2/0 gauge copper or larger, and place fuses within 7.5 cm (3 inches) of the positive terminal. This instance of careful sizing makes the system effective and reliable.

Choose cables with marine-grade copper and metal protection. Keep conductors in protected channels, away from heat and sharp edges; use covered trunks and grommets. Dimension conductors to prevent voltage drop above 0.3 V per 100 mA for control lines and excessive length. Where the loom removes potential chafing, you usualmente achieve longer life. In a typical setup, a 25 mm2 conductor handles ~100 A for short runs, while longer routes require larger gauge to effectively keep losses low.

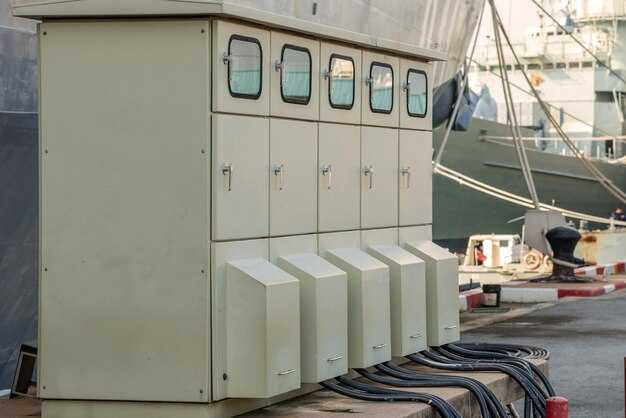

Establish a single negative bus and bond all metallic parts to a common ground. The care you put into bonding prevents galvanic corrosion when at a marina dock. Use clear labeling, weatherproof shore inlet, cord strain relief, and a dedicated GFCI/RCBO where available. You must follow marine electrical standards and promptly remove any frayed cords. Test protections with a low-current signal before energizing the full system.

Document every circuit: label positives with color codes, record amperage ratings, and keep an on-board log for maintenance. Something as simple as a spare fuse can save a trip to the marina store. After wiring, run a staged test: first a no-load check, then energize with a small 12V lamp to verify wiring, and confirm that the load tests do not exceed recommended durations so you avoid overheating during the first days at sea.

Onboard Power System Setup: Practical Steps and Replacement Guidance

You must verify voltages across the main battery pack and secure all connections before startup to prevent misalignment under load.

We recommend inspecting each cell group and ensuring voltages align with the pack’s target; these matchings support even absorption during charging and protect the motor and controller from imbalance.

Apply advanced safety by locking connectors and bundling lead wires so connections remain firm under vibration and motion, with proper strain relief and regular inspection for corrosion or fraying.

If any component shows wear or shape distortion, replace right away; these dont compromise safety or performance under load, especially in rough conditions.

Charging guidance: use the recommended charger and monitor voltage curves to avoid overcharging; stay within the right charge current and limits, and heed the absorption stage for long-life batteries.

When replacing batteries, match shape, capacity, and chemistry; install them in matched sets to keep voltages balanced across the pack and maintain predictable performance under load. This setup becomes convenient for routine maintenance.

Connections and compatibility: verify that lead wires connect to the correct terminals on the motor and controller; confirm polarity and secure locking. Use colored markers to track right connections and prevent mismatches.

Maintenance snapshot: schedule brief inspections after each voyage, check for corrosion, loose fittings, and signs of swelling; these checks reduce surprises and keep the system ready for the next event.

Conditions and event readiness: store spare cells, plan for weather and sea conditions; in event of abnormal readings, shut down immediately and recheck charging sources, sensors, and connections.

Determine Battery Bank Configuration and Capacity Needs

Choose a battery bank that delivers about 2,000–3,000 Wh of usable energy per day, plus a 1,000–1,500 Wh backup reserve for those longer marina stays or foul-weather voyages.

To size the bank, start by listing every circuit and its approximate draw. Those include lighting (40–80 W), refrigeration (60–120 W), electronics (50–150 W), pumps (100–300 W), and nav gear (20–50 W). Multiply each load by hours of operation and sum to daily watt-hours, then add 5–15% for inverter losses. This approach remains straightforward and helps owners see whether loads will stay within everything you rely on, day after day, across circuits.

Voltages matter: choose 12V, 24V, or 48V based on total current, cable runs, and space. A straightforward method is to run the house bank at 24V on most boats, then connect pairs of 12V modules in series to reach 24V and parallel strings to increase capacity. This keeps voltages consistent across high-draw circuits and reduces copper weight while offering room for growth during those extended voyages.

Calculate DoD and Ah requirements using chemistry-specific targets. Lead-acid systems typically aim for about 50% DoD, while LiFePO4 systems commonly use 80–90% DoD. The rule is: Ah_needed = Daily_Wh / (Voltage × DoD). For example, 2,200 Wh per day at 12V yields 183 Ah; with a 0.5 DoD you need ~366 Ah (round to 380–400 Ah) and add 20–40% margin to stay comfortable. For LiFePO4 at 12V with 0.8 DoD, the base is ~229 Ah, so target ~280–320 Ah. Those figures help you choose whether to go with one large bank or multiple smaller strings while keeping the engines and critical systems covered, even during cloudy days.

Configuration options balance capacity and practicality. For 12V, use parallel strings of 12V modules to raise Ah; for 24V, run series pairs and parallel those pairs to hit the desired capacity. Ensure each string is balanced, matched in age and health, and protected by individual fuses and a capable BMS if you choose Li-ion. Also allocate a separate starter or emergency battery for engines and key circuits to stay cranking power available when needed. Those measures directly influence lifespan and reliability across your onboard systems.

Charging and monitoring play a major role in meeting targets. Solar offers a meaningful contribution, especially in marina conditions. A 300–600 W array with an MPPT controller can add 1,200–3,000 Wh daily under good sun, helping keep the house bank away from those deeply discharged states. Shore power or a small generator supplements charging during heavy-use voyages, with a topping cycle that keeps voltages stable and fully charged batteries ready for the next leg. Track state of charge and temperature, and refresh battery records after each voyage to ensure you stay aligned with the plan and those reality checks aboard.

Prepare and Route Wiring with Safety Clearances

Choose dedicated internal and external routing paths that maintain at least 50 mm from hull skin, fuel lines, and moving components. Confirm clearance with a physical pull test and inspect insulation before securing. Follow best practices to protect the investment and bolster your confidence; this full plan improves youre ability to manage output and charge leads safely.

1. Assess wire compositions and divide by types: high-current output cables, charge leads, control circuits, and external sensor lines. Use separate conduits and avoid mixing in single bundles.
2. Plan the run on your deck plan, mark entry/exit points, and note clamps to maintain full clearance from decks, bulkheads, and those areas near the sail or rigging in marinas.
3. Choose routing methods that reduce exposure: use rigid conduit for external runs, weatherproof connectors, and strain relief near terminations; keep close to bulkheads to minimize snag risk in marinas and while docking.
4. Separation and spacing: maintain 25–50 mm minimum between power and data lines; keep 100 mm from hull edges where practical; avoid crossing lines at acute angles to limit potential interference and heat buildup.
5. Pulling and protecting wires: use fish tapes or pull cords, maintain straight pulls, avoid sharp bends; protect with spiral wrap or conduit; remove slack gradually to prevent pinch points and abrasion.
6. Connector and termination: install only waterproof connectors in external runs; seal against moisture; label each lead with color code and function; ensure external terminations are protected when docked.
7. Grounding and bonding: route grounds to dedicated bus bars; avoid looping grounds; ensure a solid bond to the hull where required; inspect continuity at the end of the run.
8. Inspection and testing: perform insulation resistance tests, continuity checks, and light-load testing on a partial run before energizing the full system; verify output values and voltage drop at the end of each run.
9. Case handling and adjustments: in case of heat buildup, rearrange to improve airflow; if needed, upgrade to larger conduit or more spacing; keep yourself safe when rerouting and do not rush.
10. Marinas and external exposure: when working in marinas, minimize external exposure by using rated enclosures; cover exposed terminations with protective caps when docked for long periods; consider external shade in sun exposure to reduce heat.
11. Mind your wiring compositions and choosing methods: document the planned wiring compositions and choose optimal paths based on load, exposure, and future expansion; keep those runs organized for future maintenance, which increases confidence and allows youre team to handle quickly.
12. Output checks and charge path: measure voltage drop under load, confirm charger and inverter paths deliver expected output, and ensure charge lines stay within rated limits.

Install Charging Hardware: Alternator, Battery Charger, and Inverter Wiring

Use a marine-grade alternator wired to a dedicated battery bank through a high-amperage fuse block, paired with a multi‑stage external battery charger, and route inverter wiring on a separate, properly protected circuit. This setup powers boating systems safely and offers much flexibility for next‑level power management.

• Component selection
  • Choose an alternator that matches your engine and peak load. Base the rating on the boat’s typical cycle of use and the sum of house and starting battery demands.
  • Pick chargers that are specifically designed for marine use and compatible with your battery chemistry (chemical types such as lead‑acid, AGM, or lithium‑ion). Consider an auto‑start DC charger for engines with limited space or when maintenance is needed by the maintainer.
  • For inverters, use a unit sized to meet peak AC loads, plus a safety margin; ensure the inverter supports DC input from the same battery bank and provides a grounded, isolated AC output.
• Wiring plan
  • Run a single positive feed from the alternator to the main battery bank, then to the charger input via a heavy gauge cable (typically 2/0 AWG or larger for long runs). Place a high‑quality fuse close to the battery to protect the line.
  • Ground the system to a common engine‑bay or boat chassis ground with a large, corrosion‑resistant lug. Good external connections prevent loose contacts and voltage drops that reduce charging effectiveness.
  • Install a battery combiner or smart isolator between starting and house banks to manage charging without cross‑feeding. This makes charging more efficient and reduces the risk of overdischarge.
• Battery charger wiring
  • Mount the charger in a dry, ventilated area. Connect to the battery bank following the manufacturer’s polarity and color‑coding. Use ferrules on terminals to avoid corrosion at the connection.
  • Configure the charger for the boat’s battery chemistry and desired voltage profile. For chemical batteries, ensure the charger provides proper bulk, absorption, and float stages to maximize life.
  • Keep the charger input protected from moisture and mistakes; use a dedicated circuit and a switch or breaker to control access.
• Inverter wiring
  • Feed the inverter from the same battery bank with a heavy gauge DC lead and a local DC‑AC ground fault protection device if required by code. Use a dedicated inline fuse sized to the inverter’s maximum draw, placed within 10 cm of the battery terminal.
  • Keep AC wiring routes separate from DC power runs. Use a labeled, accessible disconnect for the inverter and avoid routing near water lines or fuel lines.
  • If you use an external inverter remote, keep the remote at the maintainer’s reach; ensure the inverter shuts off cleanly if battery voltage falls below a safe threshold.
• Connections and maintenance
  • Inspect every connection for corrosion; clean corroded terminals with an appropriate cleaner and apply dielectric grease to prevent future oxidation.
  • Check battery terminals weekly during heavy use periods and after every voyage. Loose connections cause voltage drops and heat build‑up, reducing charging effectiveness.
  • Test the full charging cycle periodically: engine running alternator charging, shore‑power charging via the charger, and inverter loading. Record voltages and identify drops across cables or connections.
• Safety notes
  • Shut off power before adjusting wiring. Confirm all fuses are in place and sized correctly for the rated amperage.
  • Label all wires and maintain clear, organized routing to simplify future servicing by any onboard maintainer.
  • Use weather‑resistant enclosures for all electronics exposed to the marine environment and ensure proper ventilation in the battery area to prevent gas buildup.

Set Up Monitoring and Safety Systems: Voltage, Temperature, and State of Charge Alerts

Install a centralized monitoring panel that tracks voltage, temperaturey state of charge for each battery bank, and configure alerts that trigger at predefined thresholds. Choose a versatile, marine-rated system with auto logging and a clear audible/visual alarm for the crew and maintainer. The purpose is to protect people and equipment by surfacing risks early.

Place sensors at each battery bank and, where possible, per cell for critical packs. Include amperage monitoring to track load and prevent sudden surges. Set the monitoring frequency to 1-2 seconds during charging or heavy use, and 5-15 seconds in normal operation to balance visibility with power draw. Ensure data is logged from the moment the system powers on, so you can trace trends if an alert fires. These things help you pinpoint causes quickly. Also monitor charge current to catch anomalies early. Include motor loads and starting amperage to detect abnormal draw.

Set alert thresholds to warn about under-voltage or over-voltage, high temperature, or rising state of charge during long storage. Make sure the system can auto initiate a safe cut-off to prevent overcharging when thresholds are exceeded. For flooded batteries, account for venting and temperature rise; avoid relying on temperature alone; use voltage and SOC as confirmation before any action; if readings remain out of range, re-check connections and sensor placement. Also verify readings when packs are charged. Take appropriate action if a threshold triggers and the condition persists.

Follow the following guidelines for alert levels and response paths. Assign a maintainer to review signs of degradation weekly and after any alert. Label all zones and keep spare sensors and connectors on hand. If readings drift or remain high, leave the area and re-check connections before actions. This significantly reduces risk and clarifies next steps for the crew and motor operators.

If you cannot install a full monitoring matrix, use a basic setup that covers voltage and temperature at the main battery terminal and include manual SOC checks. choosing a display that fits your boat and has programmable thresholds helps, and a compact, rugged unit with a simple log for maintenance notes is an alternative. This versatile approach helps you stay informed without overcomplicating the system.

During setup, leave the system in auto mode only after calibrating sensors and verifying alarms in a controlled setting. Conduct a sea trial to confirm that voltage, temperature, and SOC alerts trigger at the intended thresholds, log the results, and adjust as needed. Records help the maintainer and experts stay aligned and prevent mistaken reactions.

Assess Battery Health and Replacement Timing

Baseline test after each season: run a capacity check using a reliable battery analyzer or load tester. If the measured capacity is around 70% of the nameplate rating or lower, plan a replacement to avoid unexpected power loss at sea.

For a quick field check, monitor voltages under load. If the pack voltage falls gradually under load or during motor start, likely aging cells reduce capacity, and a replacement is likely to be needed.

Inspect connections: cables, clamps, and threaded terminals. Corroded, loose, or damaged connectors create high resistance, heat, and uneven charging. Clean or replace corroded contacts and tighten loose clamps. If a cable shows cracks or shell damage, replace the battery pack rather than patching. Keeping connections clean helps charging cycles stay stable and prolongs life.

Check where the battery sits in the compartment: ensure ventilation and avoid heat buildup, which can shorten life. Regularly inspect for leaks or swelling and address immediately.

Replacement timing uses a combination of factors: capacity, voltage stability, and observed wear. If you observe much voltage sag under load, or a corroded or loose terminal, replace now. Many sailors consult the battery vendor or a marine electrician to confirm the plan. Use a battery with the same voltage class and a robust, threaded terminal setup to ensure secure connections. After replacement, perform a full charge and verify that voltages settle quickly and stay stable as the system powers the motor and other loads.

To stay ahead, track cycles and age. When partial state of charge occurs frequently and the pack will not reach full charge reliably, plan a replacement window. Automatic chargers and alternators can help monitor, but if the system shows reduced charges or the charger reports fault, consider action.
